49PM

49PM-High efficiency permanent magnet stepper motor

φ49MM standard permanent magnet stepper motor with a step angle of 7.5 degrees

Product features

High torque

Smooth running

Application field

Laser printers Financial self-service equipment

Support customized production, please contact us

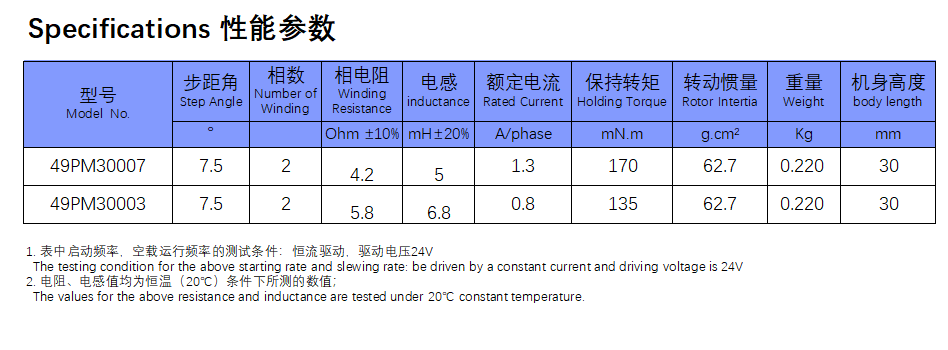

Technical parameter

49PM30003 49PM30007

Height

30 mm

Weight

0.220 Kg

Rotor Inertia

62.7 g.cm²

Holding Torque

135 N.m

Rated Current

0.8 A/Phase

Winding Inductance

6.8 mH/Phase

Winding Resistance

5.8 Ohm/phase

Number of Winding

2 Phase

Step Angle

7.5 º

Height

30 mm

Weight

0.220 Kg

Rotor Inertia

62.7 g.cm²

Holding Torque

170 N.m

Rated Current

1.3 A/Phase

Winding Inductance

5 mH/Phase

Winding Resistance

4.2 Ohm/phase

Number of Winding

2 Phase

Step Angle

7.5 º
